MODEL 66461 finish option
LONGLIN HANDLEDIRECTORY REFERENCE 底板

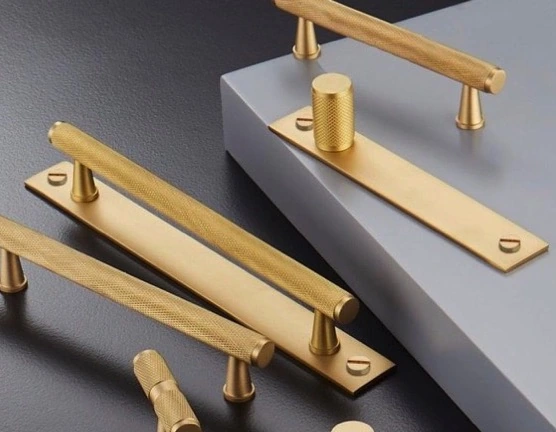

Backplate / 底板
Enquire for quotation
- Reference
- 底板
- Finishes
- 1 finish option
- Material
- Confirm with Longlin
- Product type
- Hooks & Fittings
Choose a listed finish and specification, or ask us to confirm. Prices, materials, samples, availability and supply terms are confirmed directly with Longlin.
Ask about this productProduct details
Reference 底板 from the Longlin directory dated 2026-09-10. All 8 supplied finish and specification combinations are listed below. The reference image may show a different finish.
Source labels and component dimensions are reproduced as supplied. Materials and missing dimensions require confirmation. Check a physical finish sample and approved drawing before drilling or production.
Specifications & directory reference
| Finish | Hole centres / option | Dimensions as supplied (mm) | Weight (g) | Notes |
|---|---|---|---|---|
| Brushed gold拉丝金 | 单孔 | 70*25*3mm | 45 | — |
| Brushed gold拉丝金 | 64 | 120*25*3mm | 90 | — |
| Brushed gold拉丝金 | 96 | 150*25*3mm | 112 | — |
| Brushed gold拉丝金 | 128 | 185*25*3mm | 118 | — |
| Brushed gold拉丝金 | 160 | 220*25*3mm | 140 | — |
| Brushed gold拉丝金 | 192 | 260*25*3mm | 195 | — |
| Brushed gold拉丝金 | 224 | 300*25*3mm | 225 | — |
| Brushed gold拉丝金 | 螺丝钉 | Not listed — confirm with Longlin | Not listed | — |
Source: Sheet1, rows 925–932. Overall dimensions are in the source length × width × height order; option labels may describe individual components. Open the current directory PDF.
Drawings, samples & customisation
Send your model reference, finish, dimensioned drawing, required quantity and delivery destination. Feasibility and supply terms are confirmed after review.
